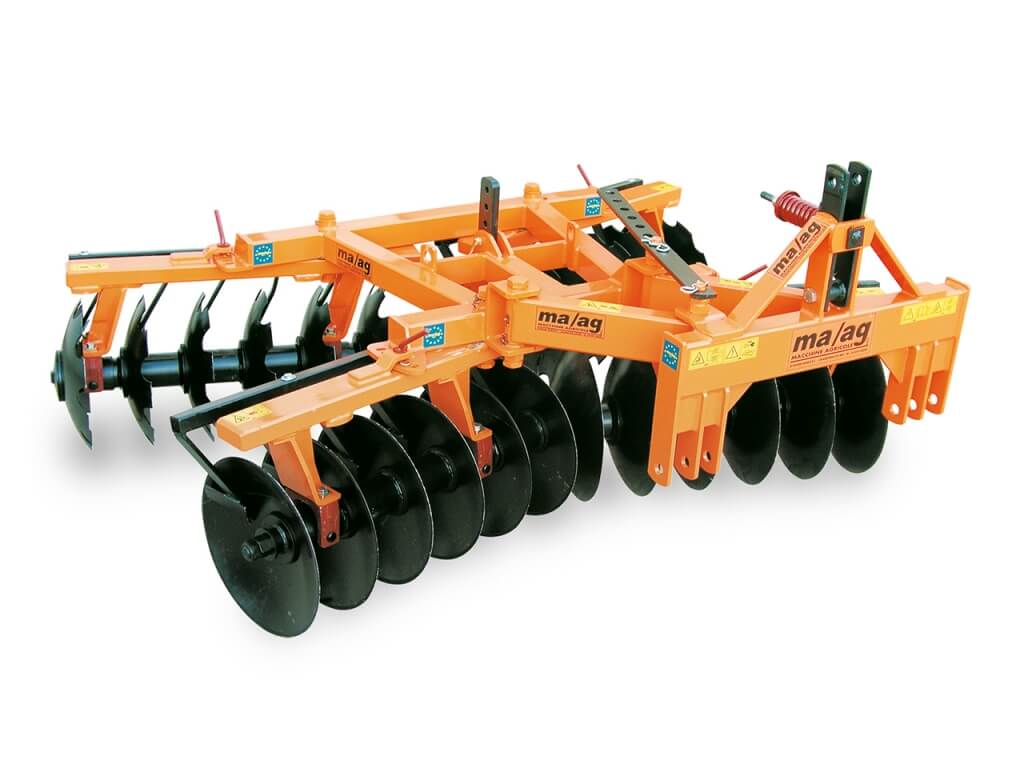

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDX disc harrows are characterized by a wide range of usage with working width from 1,50 m to 7,30 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the four sections of the discs, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground. The strong structure guarantees an adequate flex-torsion rigidity and allows (where expected) to complete the equipment with a wide range of accessories.
STANDARD EQUIPMENT
| Discs ø 460 or 510 mm with front smooth discs and rear toothed discs, individually adjustable (with locking spin) on fixed positions. |
| Disc axle made of steel square 30 mm, two conical roller bearings, swiveling with interchangeable crankcase system ma/ag. |
| Adjustable central anchor. |
| Linkage to the tractor manually adjustable (hydraulic at demand) with bumper spring. |
EDX SV – 16 discs
| EDX SV 16 460 | EDX SV 16 510 | |
| DISCS N. | 16 | 16 |
| WORK. WIDTH | 1,50 | 1,50 |
| TRANSP. WIDTH | 8 | 8 |
| HP | 50 | 50 |
| KG | 630 | 650 |
| DISC DIST. | 170 | 170 |
| Ø DISC | 460 | 510 |
EDX SV – 20 discs
| EDX SV 20 460 | EDX SV 20 510 | |
| DISCS N. | 20 | 20 |
| WORK. WIDTH | 1,90 | 1,90 |
| TRANSP. WIDTH | 8 | 8 |
| HP | 50 | 50 |
| KG | 700 | 730 |
| DISC DIST. | 170 | 170 |
| Ø DISC | 460 | 510 |
EDX SV – 24 discs
| EDX SV 24 460 | EDX SV 24 510 | |
| DISCS N. | 24 | 24 |
| WORK. WIDTH | 2,25 | 2,25 |
| TRANSP. WIDTH | 8 | 8 |
| HP | 60 | 60 |
| KG | 800 | 835 |
| DISC DIST. | 170 | 170 |
| Ø DISC | 460 | 510 |
Accessories
| CODE | DESCRIPTION |
| ACEDXSV01 | Central anchor |
| ACEDXSV02 | Hydraulic pipes for lateral travel |
| ACEDXSV03 | Lateral containment discs kit |
