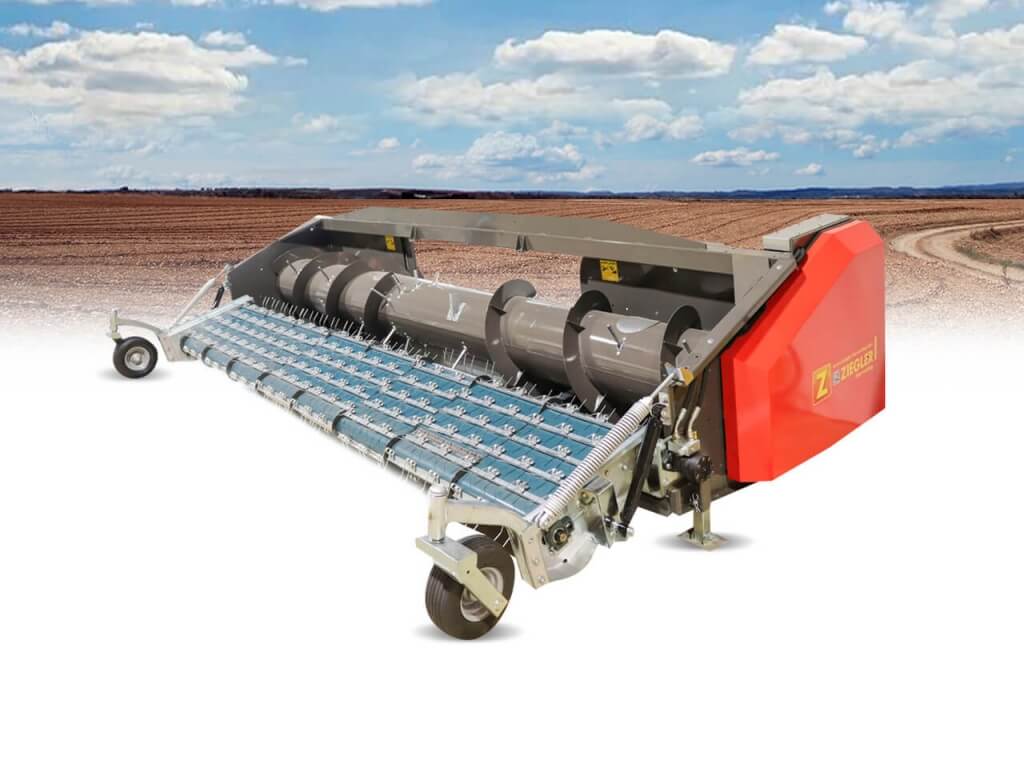

Heder specializat, ZIEGLER Pick-up-Systeme

  • Collection conveyors, hydraulically controlled with safety valves
  • Each band equipped with 36 springs, divided into 9 rows
  • Direct control from the cabin possible
  • Auger fitted with a series of disc clutches
  • Height of the two support wheels freely adjustable
  • If combine has mechnic reel control, hydraulic pump and tank available
  • Highlight: Fits all common combines due to interchangeable frames

The ZIEGLER pick-up system enables the swath harvesting of nearly all crops. Especially in difficult crops, e.g. rape, grass seed, peas, beans, and lentils, the pick-up system shows its extraordinary efficiency.


  • Also picks up crops lying close to the ground
  • Stones and soil stay on the field
  • High performance due to high working speed and no interruption of the harvest by stopping and reversing of the combine


  • Hydraulically adjustable swath downholder
  • NEW: performance attenuation
  • Improved ground following
  • Up to 4 km/h higher speed
  • Smoother running machine
  • Less abrasion at the front of the pick-up system

Technical specifications

Product Opening wigth, cm Rows Overall width, cm Overall height, cm Overall depth, cm Weight, kg Auger diameter, cm Auger fingers Auger Speed.max.
Pick-up 300 6 355 140 195 860 61 16-30 200 U/min
 Pick-up 400 8 465 140 195 1190 61 16-32 200 U/min
 Pick-up 500 10 556 140 195 1550 61 16-36 200 U/min
