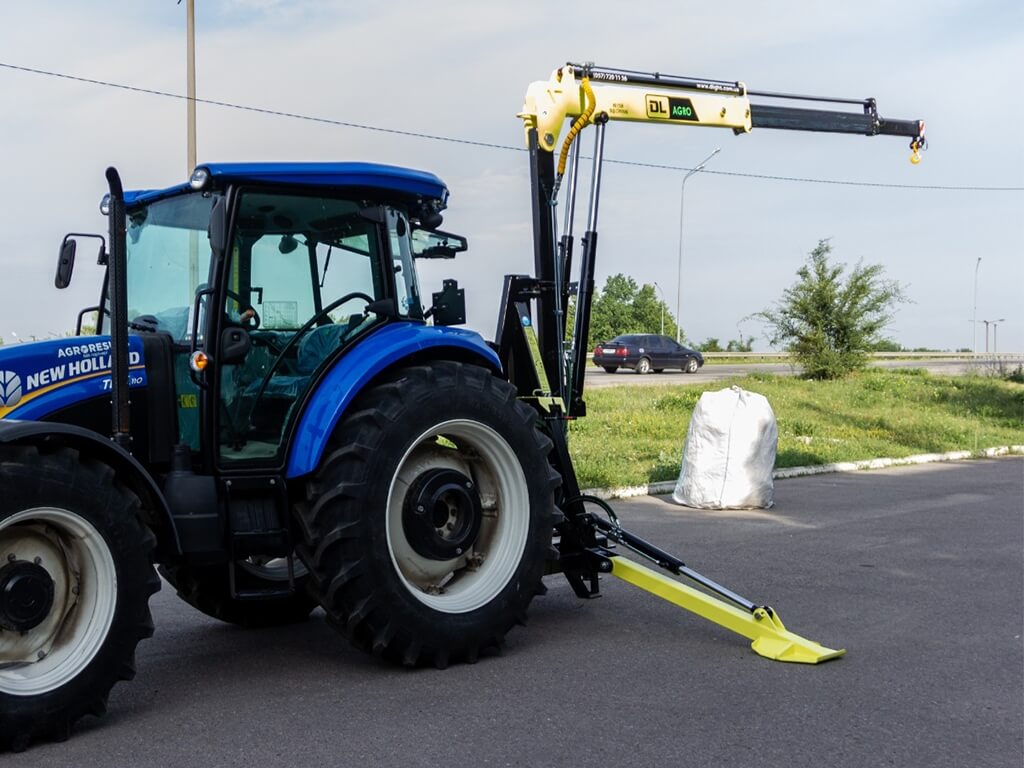

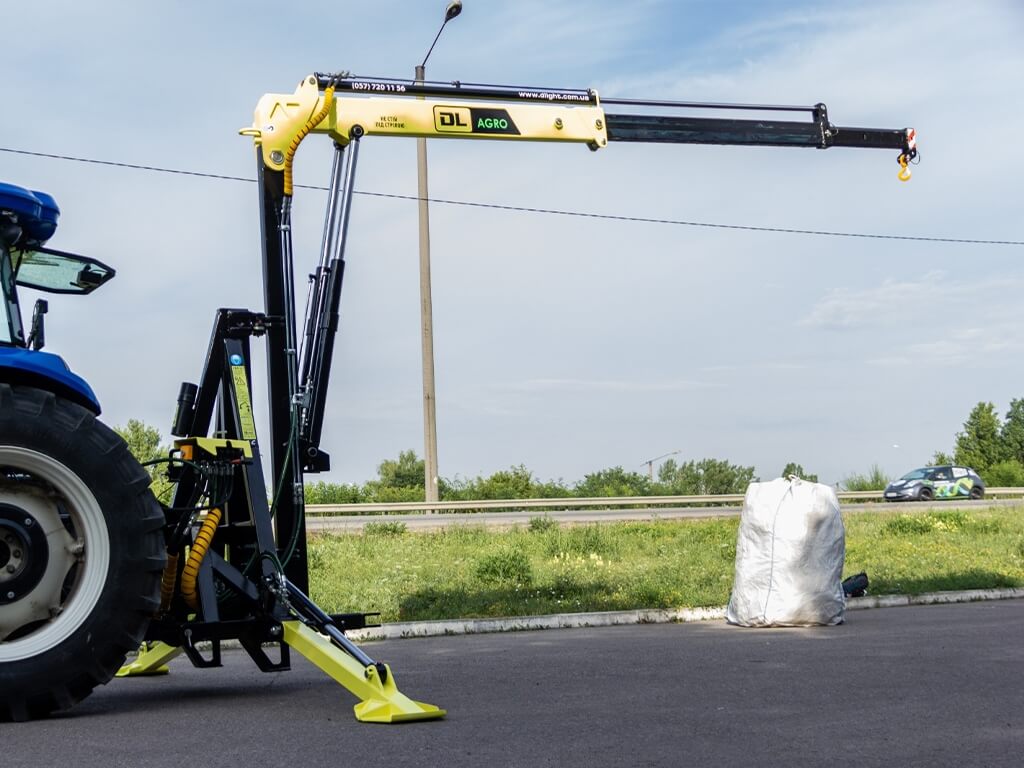

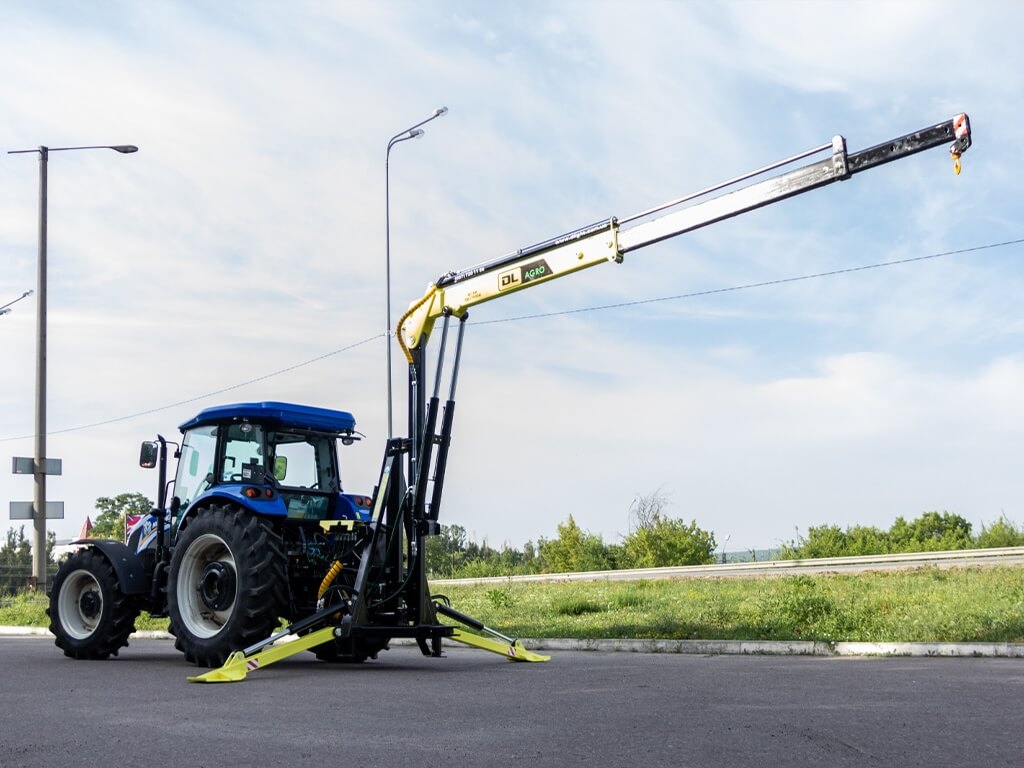

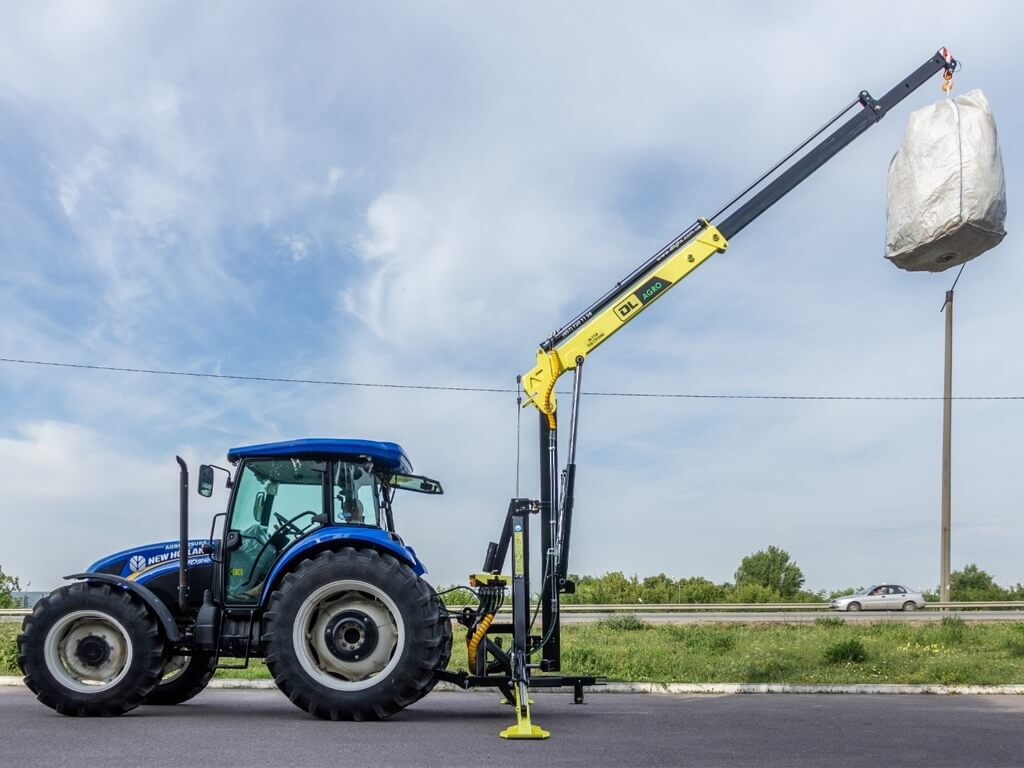

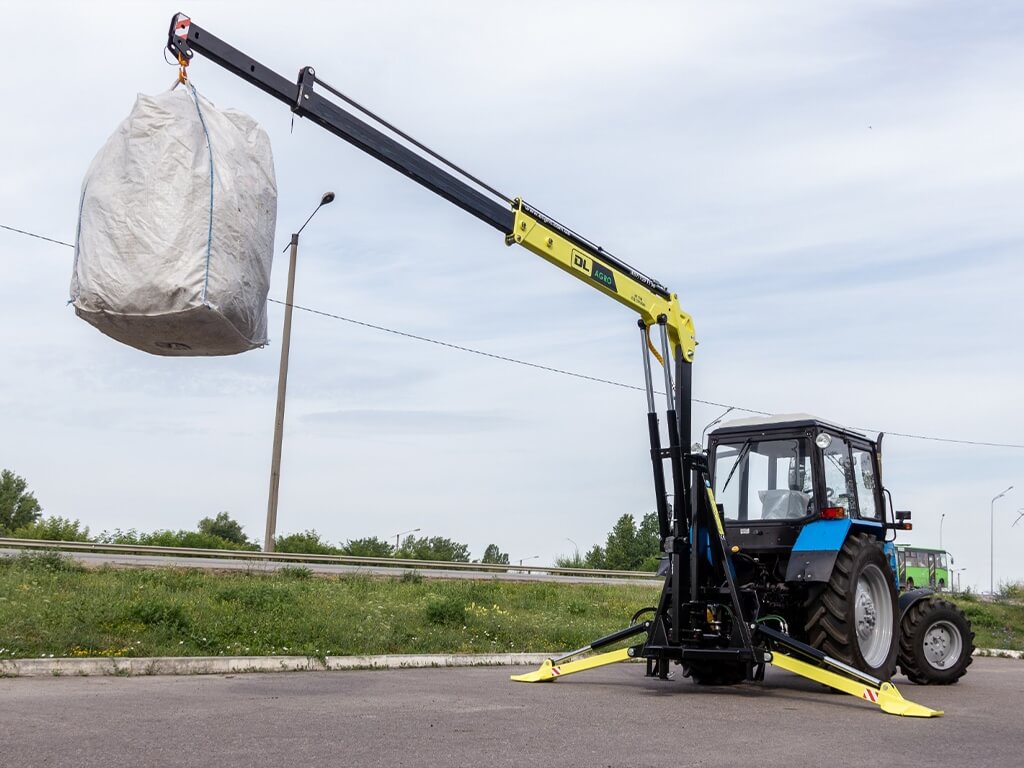

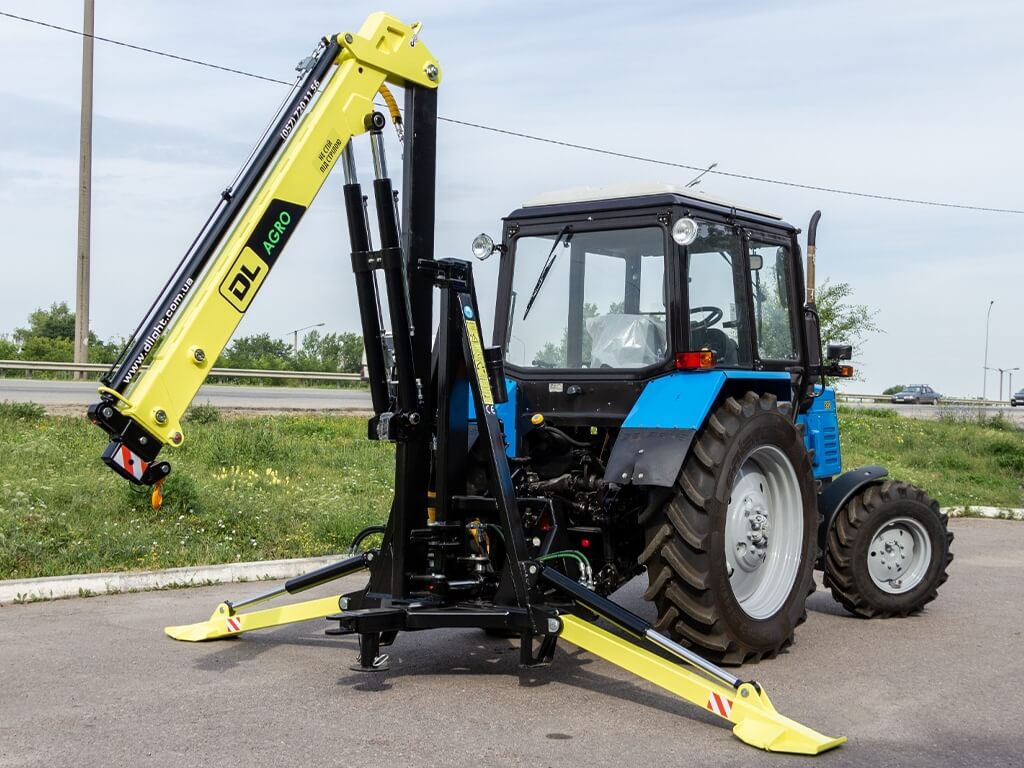

Macara telescopică 5.5M, DLWest Agro Crane

Extensie maxima braț, m                                                                                        5,5

Sarcină de ridicare la extensia minima a  brațului, kg                                       3000

Sarcină de ridicare la extenzia maxima a brațului, kg                                       1000

Inălțime de ridicare, m                                                                                             6,7

Tip prindere puncte                                                                                                 3

Debitul nominal al pompei, L/min.                                                             40

Presiune de lucru, bar                                                                                             160

Stabilizoare                                                                                                               Hidraulice

Capacitate de remorcare                                                                                        4-6 t

Unghiul de culisare a brațului                                                                                160

Greutate utilaj, kg                                                                                                     115 0

Dimensiuni totale (H × L × L), mm                                                                        3.130 × 1.900 × 1.580

cuple hidraulice, buc.                                                                                              6

5 supapă de distribuție hidraulică a secțiunii,buc.                                             1

Unitate de prindere                                                                                                  Cârlig

Semnal audio                                                                                                           +

Inclinometru                                                                                                              +
