Main Features

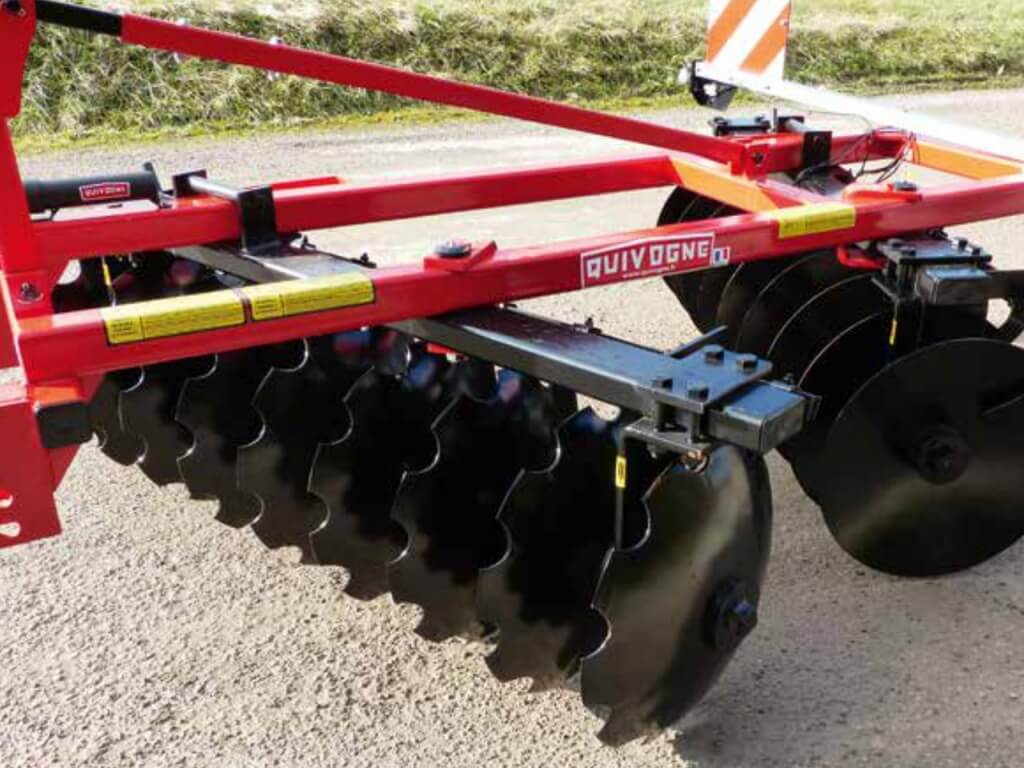

The CP is a V form disc harrow tdat is designed and built by Quivogne. It is available in 5 versions from 1,20m to 2m
Technical specifications
Chassis tube 80x80x6, standard Cat .1 and 2 linkage - Disc gang tube 120x60x6, square shafts of 40, discs Ø560, cutaway in front, plain behind, (weight: 19 Kg), spacing 215. Triple seal bearing housings. Adjustment of disc gang angle, by section. Marker boards and lighting depending on tde widtd.
Technical characteristics
| Type | Working widtd | Discs Nbre | Poids |
| CP 12-560*4.30 éc. 215 | 1,20 m | 12 | 472 kg |
| CP 14-560*4.30 éc. 215 | 1,40 m | 14 | 542 kg |
| CP 16-560*4.30 éc. 215 | 1,60 m | 16 | 612 kg |
| CP 18-560*4.30 éc. 215 | 1,80 m | 18 | 682 kg |
| CP 20-560*4.30 éc. 215 | 2,00 m | 20 | 752 kg |
