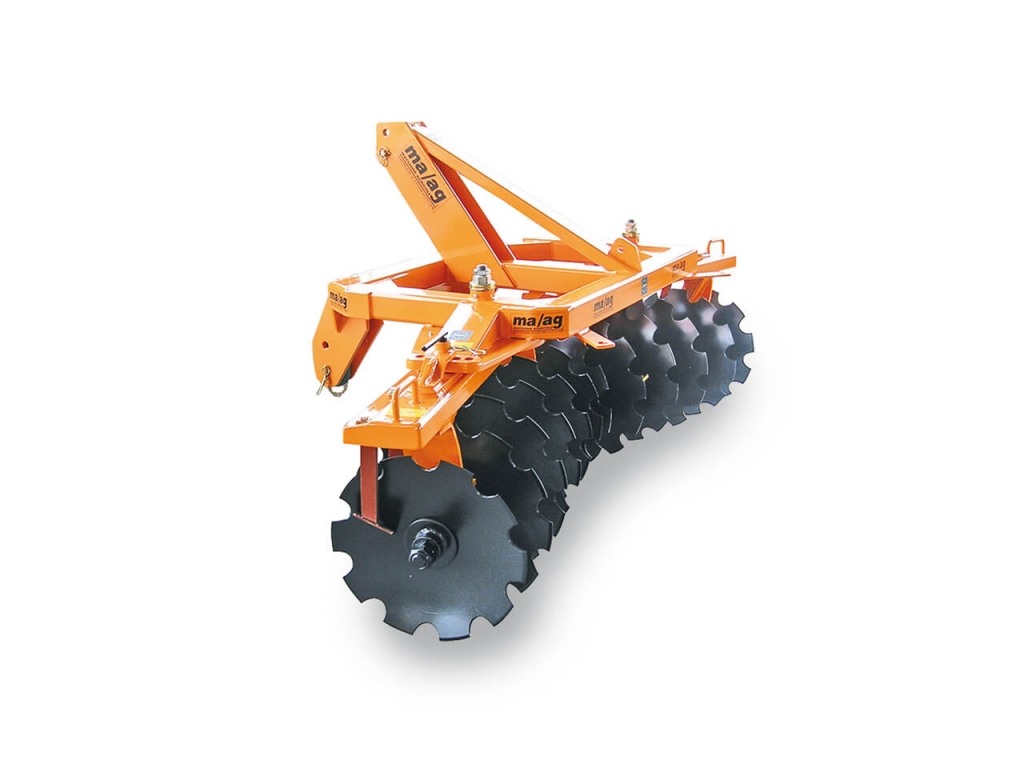

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDX disc harrows are characterized by a wide range of usage with working width from 1,50 m to 7,30 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the four sections of the discs, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground. The strong structure guarantees an adequate flex-torsion rigidity and allows (where expected) to complete the equipment with a wide range of accessories.
STANDARD EQUIPMENT
| EQUIPMENT | Brought on lift with III point linkage |
| FRAME | Fixed, made of tubular steel |
| SECTIONS | Made of tubular steel, swiveling (on bearings) in order to reduce the encumbrance during the transport |
| SECTIONS CONTROL | Manual, with plate and holes |
| SMOOTH OR TOOTHED DISCS | (specify at the order) diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm according to the models |
| SUPPORTS | 4 swiveling supports with 2 conical roller bearings and interchangeable crankcase system ma/ag |
| DISC AXLE | Steel square 30x30 mm or 40x40 mm according to the models |
| SOIL SCRAPERS | Individual adjustable plungers |
| ATTACH | III point linkage with mechanical regulation to the grubber |
ED Q30
| ED Q30 10 12 | ED Q30 12 12 | ED Q30 10 22 | |
| DISCS N. | 10 | 12 | 10 |
| DISC AXLE | 30x30 | 30x30 | 30x30 |
| DISCS | 610/5 | 610/5 | 610/5 |
| DISC DIST. | 230 | 230 | 270 |
| WORK.WIDTH | 215 | 260 | 250 |
| KG | 690 | 740 | 700 |
ED Q40
| ED Q30 10 12 | ED Q30 12 12 | ED Q30 10 22 | |
| DISCS N. | 10 | 12 | 10 |
| DISC AXLE | 30x30 | 30x30 | 30x30 |
| DISCS | 610/5 | 610/5 | 610/5 |
| DISC DIST. | 230 | 230 | 270 |
| WORK.WIDTH | 215 | 260 | 250 |
| KG | 690 | 740 | 700 |
Accessories
| CODE | DESCRIPTION |
| ACCED0001 | Hydraulic III point hook |
| ACCED0002 | Central anchor (clamp + anchor) |
| ACCED0003 | Double linkage III point kit |
