Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDV and EDV Idisc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| TOWING BEAM | With III point linkage incorporated |
| FRAME | Tubular steel 120x120x8 mm |
| SECTIONS | Tubular steel 140x70x7 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| DISCS AXLE | Steel square 40x40 mm |
| SOIL SCRAPERS | Individual adjustable plungers |
| DISCS | Diam. 610 mm thickness 5 mm or diam. 660 mm thickness 6 mm |
| DISC AXLE | 230 mm |
| SECTIONS ANGULATION | Hydraulic |
| The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |

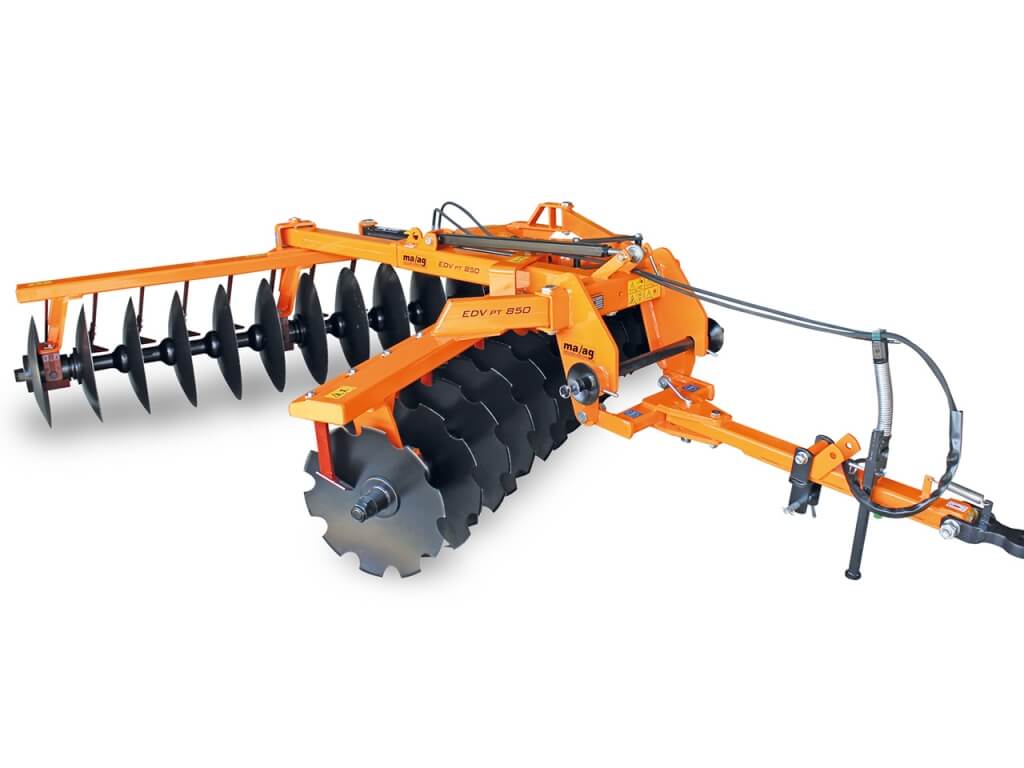

EDV PT 850 - 20discs
| Model | EDV PT 850 20 12 | EDV PT 850 20 13 |
| DISCS N. | 20 | 20 |
| WORK. WIDTH | 2,25 | 2,25 |
| TRANSP. WIDTH | 2,30 | 2,30 |
| SUPPORT N. | 6 | 6 |
| HP | 70 | 90 |
| KG | 900 | 1020 |
| Ø DISC | 610/5 | 660/6 |
EDV PT 850 - 22discs
| Model | EDV PT 850 22 12 | EDV PT 850 22 13 |
| DISCS N. | 22 | 22 |
| WORK. WIDTH | 2,48 | 2,48 |
| TRANSP. WIDTH | 2,55 | 2,55 |
| SUPPORT N. | 6 | 6 |
| HP | 80 | 100 |
| KG | 980 | 1110 |
| Ø DISC | 610/5 | 660/6 |
EDV PT 850 - 24discs
| Model | EDV PT 850 24 12 | EDV PT 850 24 13 |
| DISCS N. | 24 | 24 |
| WORK. WIDTH | 2,73 | 2,73 |
| TRANSP. WIDTH | 2,80 | 2,80 |
| SUPPORT N. | 6 | 6 |
| HP | 90 | 110 |
| KG | 1055 | 1200 |
| Ø DISC | 610/5 | 660/6 |
EDV PT 850 - 26discs
| Model | EDV PT 850 26 12 | EDV PT 850 26 13 |
| DISCS N. | 26 | 26 |
| WORK. WIDTH | 2,95 | 2,95 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| SUPPORT N. | 8 | 8 |
| HP | 100 | 120 |
| KG | 1140 | 1295 |
| Ø DISC | 610/5 | 660/6 |
EDV PT 850 - 28discs
| Model | EDV PT 850 28 12 | EDV PT 850 28 13 |
| DISCS N. | 28 | 28 |
| WORK. WIDTH | 3,18 | 3,18 |
| TRANSP. WIDTH | 3,25 | 3,25 |
| SUPPORT N. | 8 | 8 |
| HP | 110 | 130 |
| KG | 1220 | 1390 |
| Ø DISC | 610/5 | 660/6 |
Accessories
| CODE | DESCRIPTION |
| ACEDVPT85002 | Disc and distance piece, with soil scraper |
