Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

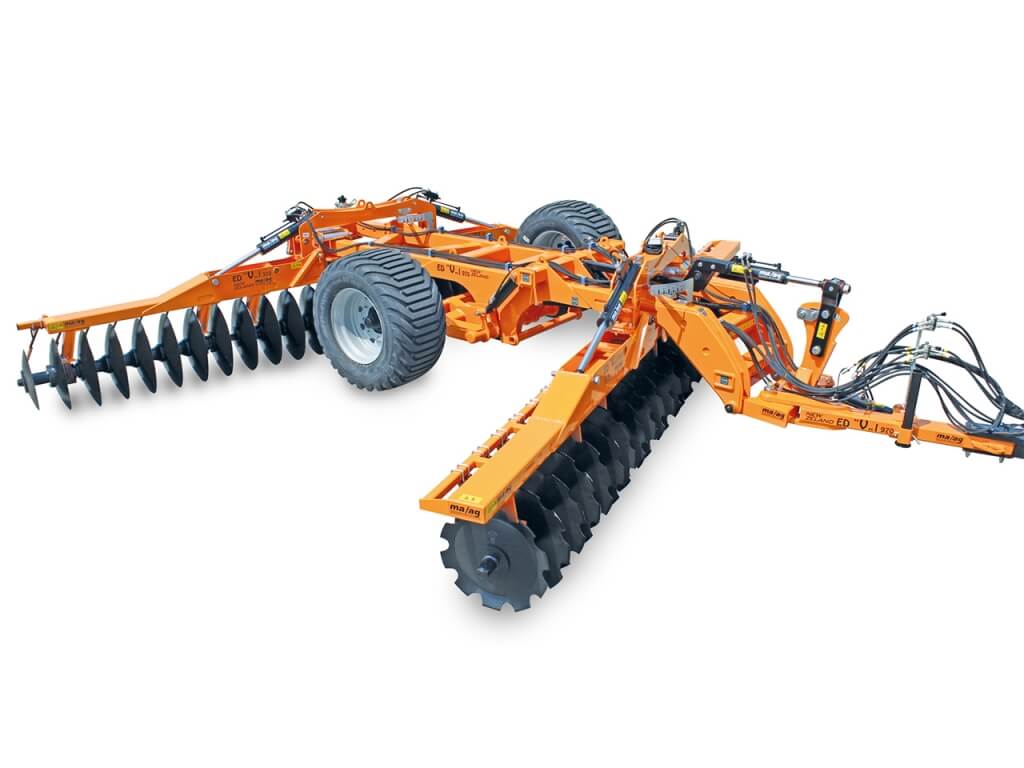

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| DOUBLE BEAM FRAME | Tubular steel 150x100x8 mm |
| SECTIONS | Tubular steel 200x100x8 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic slider for working depth regulation |
| DISCS AXLE | Steel square 40x40 mm |
| WHEELS AXLE | Steel square 80x80 mm - 8 holes hub |
| WHEELS | 500/50-17 |
| TOWING BEAM | Shift able and inclinable in different positions; hydraulic at demand |
| SECTIONS ANGULATION | Hydraulic - independent front and rear |
| SOIL SCRAPERS | Individual adjustable plungers |
| DISCS | Diam. 660 mm thickness 6 mm and diam. 710 mm thickness 7 mm |
| DISCS DISTANCE | 230 mm - 270 mm |
| Hydraulic vertical folding into 2 sections, in order to reduce the encumbrance during the transport (3,00) | |
| The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |
Version with disc distance 230 mm
| Model | EDV I 970 HD 36 13 |
| DISCS N. | 36 |
| WORK. WIDTH | 4,10 |
| TRANSP. WIDTH | 3,00 |
| SUPPORT N. | 12 |
| HP | 180 |
| KG | 5360 |
| Ø DISC | 660/6 |
| Model | EDV I 970 HD 40 13 |
| DISCS N. | 40 |
| WORK. WIDTH | 4,55 |
| TRANSP. WIDTH | 3,00 |
| SUPPORT N. | 12 |
| HP | 220 |
| KG | 5620 |
| Ø DISC | 660/6 |
| Model | EDV I 970 HD 44 13 |
| DISCS N. | 44 |
| WORK. WIDTH | 4,95 |
| TRANSP. WIDTH | 3,00 |
| SUPPORT N. | 12 |
| HP | 240 |
| KG | 5800 |
| Ø DISC | 660/6 |
Version with disc distance 270 mm
| Model | EDV I 970 HD 36 23 | EDV I 970 HD 36 24 |
| DISCS N. | 36 | 36 |
| WORK. WIDTH | 4,75 | 4,75 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| SUPPORT N. | 12 | 12 |
| HP | 200 | 240 |
| KG | 5430 | 5720 |
| Ø DISC | 660/6 | 710/7 |
| Model | EDV I 970 HD 40 23 | EDV I 970 HD 40 24 |
| DISCS N. | 40 | 40 |
| WORK. WIDTH | 5,10 | 5,10 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| SUPPORT N. | 12 | 12 |
| HP | 240 | 280 |
| KG | 5630 | 5950 |
| Ø DISC | 660/6 | 710/7 |
| Model | EDV I 970 HD 44 23 | EDV I 970 HD 44 24 |
| DISCS N. | 44 | 44 |
| WORK. WIDTH | 5,70 | 5,70 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| SUPPORT N. | 16 | 16 |
| HP | 280 | 320 |
| KG | 5830 | 6160 |
| Ø DISC | 660/6 | 710/7 |
| Model | EDV I 970 HD 48 23 | EDV I 970 HD 48 24 |
| DISCS N. | 48 | 48 |
| WORK. WIDTH | 6,25 | 6,25 |
| TRANSP. WIDTH | 3,00 | 3,00 |
| SUPPORT N. | 16 | 16 |
| HP | 320 | 350 |
| KG | 6240 | 6620 |
| Ø DISC | 660/6 | 710/7 |
Accessories
| CODE | DESCRIPTION |
| ACEDVI970HD02 | Disc and distance piece with soil scraper |
| ACEDVI970HD03 | Hydraulic movement of the towing beam |
| ACEDVI970HD04 | Supports for mounting the discs 660/7 (each disc) |
| ACEDVI970HD08 | Kit hydraulic regulation balance machine |
| ACEDVI970HD09 | Couple of oversized wheels 500/45 – 22.5 |
| ACEDVI970HD10 | Kit central discs cleaner |
| ACEDVI970HD11 | Hydraulic kit device complete with pipes |
| ACEDVI970HD13 | Dislocated towing bell |
| ACEDVI970HD14 | Light bar kit with support |
| ACEDVI970HD15 | Solenoid valve kit for hydraulic controls with control unit in the cab |
| ACEDVI970HD16 | Increase for oil bath supports for disc distance 230 mm (each) |
| ACEDVI970HD17 | Increase for oil bath supports for disc distance 270 mm (each) |
