Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

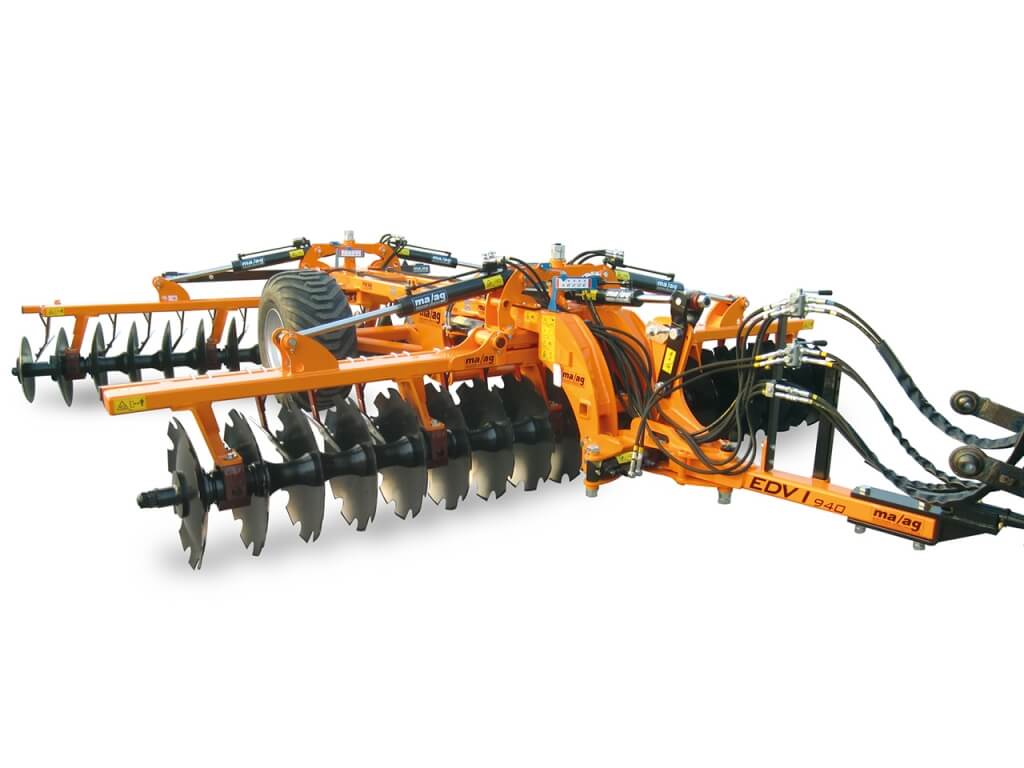

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| DOUBLE BEAM FRAME | Tubular steel 100x100x8 mm |
| SECTIONS | Tubular steel 140x70x8 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic slider for working depth regulation |
| DISCS AXLE | Steel square 40x40 mm |
| WHEELS AXLE | Steel square 60x60 mm - 6 holes hub |
| TOWING BEAM | Shift able and inclinable in different positions; hydraulic at demand |
| SECTIONS ANGULATION | Hydraulic- independent front and rear |
| SOIL SCRAPERS | Individual adjustable plungers |
| DISCS | Diam. 610 mm thickness 6 mm |
| DISCS DISTANCE | 230 mm |
| Vertical hydraulic folding in 2 sections, in order to reduce the encumbrance during the transport 2.55 m | |
| The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |
| Model | EDV I 940 28 12 |
| DISCS N. | 28 |
| WORK. WIDTH | 3,20 |
| TRANSP. WIDTH | 2,50 |
| SUPPORT N. | 8 |
| HP | 110 |
| KG | 2260 |
| Ø DISC | 610/6 |
| Model | EDV I 940 32 12 |
| DISCS N. | 32 |
| WORK. WIDTH | 3,65 |
| TRANSP. WIDTH | 2,50 |
| SUPPORT N. | 8 |
| HP | 130 |
| KG | 2460 |
| Ø DISC | 610/6 |
| Model | EDV I 940 36 12 |
| DISCS N. | 36 |
| WORK. WIDTH | 4,10 |
| TRANSP. WIDTH | 2,50 |
| SUPPORT N. | 10 |
| HP | 150 |
| KG | 2700 |
| Ø DISC | 610/6 |
| CODE | DESCRIPTION |
| ACEDVI94002 | Disc and distance piece with soil scraper |
| ACEDVI94003 | Hydraulic movement of the towing beam |
| ACEDVI94005 | Additional supports for EDVI |
| ACEDVI94008 | Kit regulation hydraulic balance machine |
| ACEDVI94009 | Couple of oversized wheels 400/60 - 15.5 |
| ACEDVI94010 | Kit central discs cleaner (each) |
| ACEDVI94011 | Hydraulic kit device complete with pipes |
| ACEDVI94013 | Dislocated towing bell |
| ACEDVI94014 | Light bar kit with support |
| ACEDVI94015 | Solenoid valve kit for hydraulic controls with control unit in the cab. |
