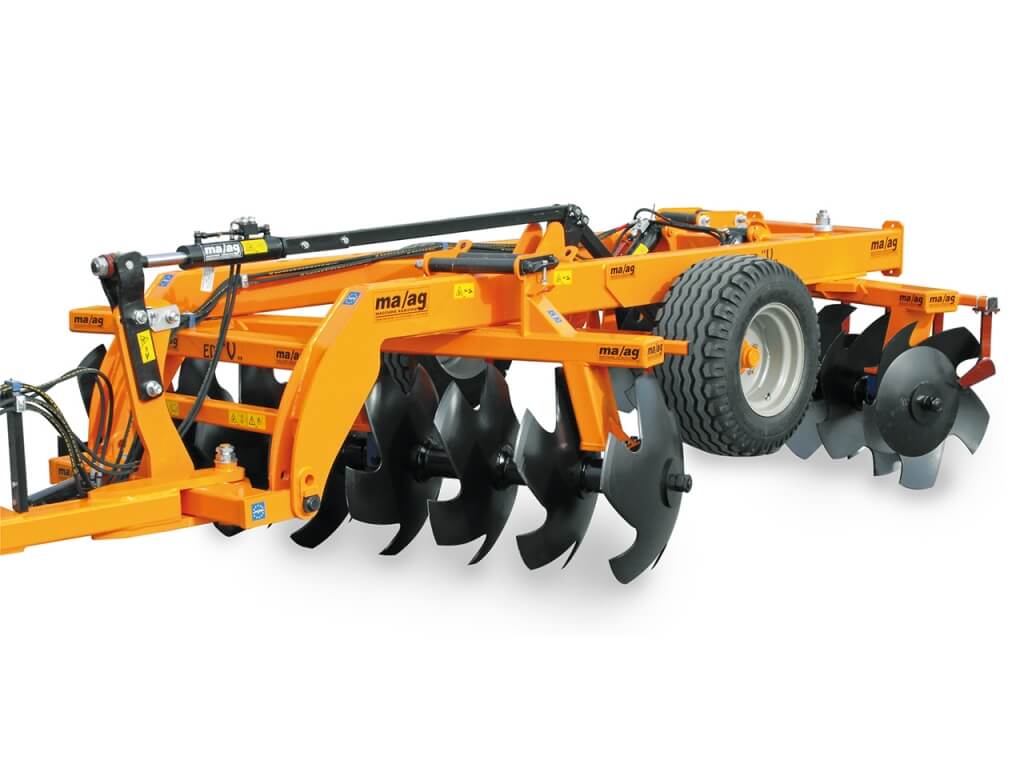

Grapă cu discuri în ‘V’ tractată, cadru fix, MAAG EDV 980 Magnum

Producător: MAAG Piese MAAG

Descriere

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.

STANDARD EQUIPMENT

FRAME Tubular steel 200x100x10 mm
SECTIONS Tubular steel 200x100x10 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL Double effect jack with hydraulic spider for working depth regulation
DISCS AXLE Steel square 40x40 mm
SOIL SCRAPERS Individual adjustable plungers
SECTIONS ANGULATION Hydraulic
WHEELS AXLE Steel square 60x60 mm - 6 holes hub
TOWING BEAM Shift able and inclinable in different positions; hydraulic
 . Version with discs “Fleaux” type ø 810 mm thickness 10 mm disc distance 340 mm

EDV 980 Magnum – 16 discs

Model EDV 980 Magnum 16 81
DISCS N. 16
WORK. WIDTH 2,60
TRANSP. WIDTH 2,70
SUPPORT N. 8
HP 160
KG 3600
Ø DISC 810/10

EDV 980 Magnum – 18 discs

Model EDV 980 Magnum 18 81
DISCS N. 18
WORK. WIDTH 2,95
TRANSP. WIDTH 3,05
SUPPORT N. 8
HP 180
KG 3980
Ø DISC 810/10

EDV 980 Magnum – 20 discs

Model EDV 980 Magnum 20 81
DISCS N. 20
WORK. WIDTH 3,30
TRANSP. WIDTH 3,40
SUPPORT N. 8
HP 200
KG 4310
Ø DISC 810/10

EDV 980 Magnum – 24 discs

Model EDV 980 Magnum 24 81
DISCS N. 24
WORK. WIDTH 3,90
TRANSP. WIDTH 4,00
SUPPORT N. 8
HP 220
KG 4890
Ø DISC 810/10

Accessories

CODE DESCRIPTION
ACEDV980SP07 Couple of oversized wheels 400/60 - 15.5
ACEDV980SP011 Hydraulic kit device complete with pipes (each)
ACEDVI980SP14 Light bar kit with support
