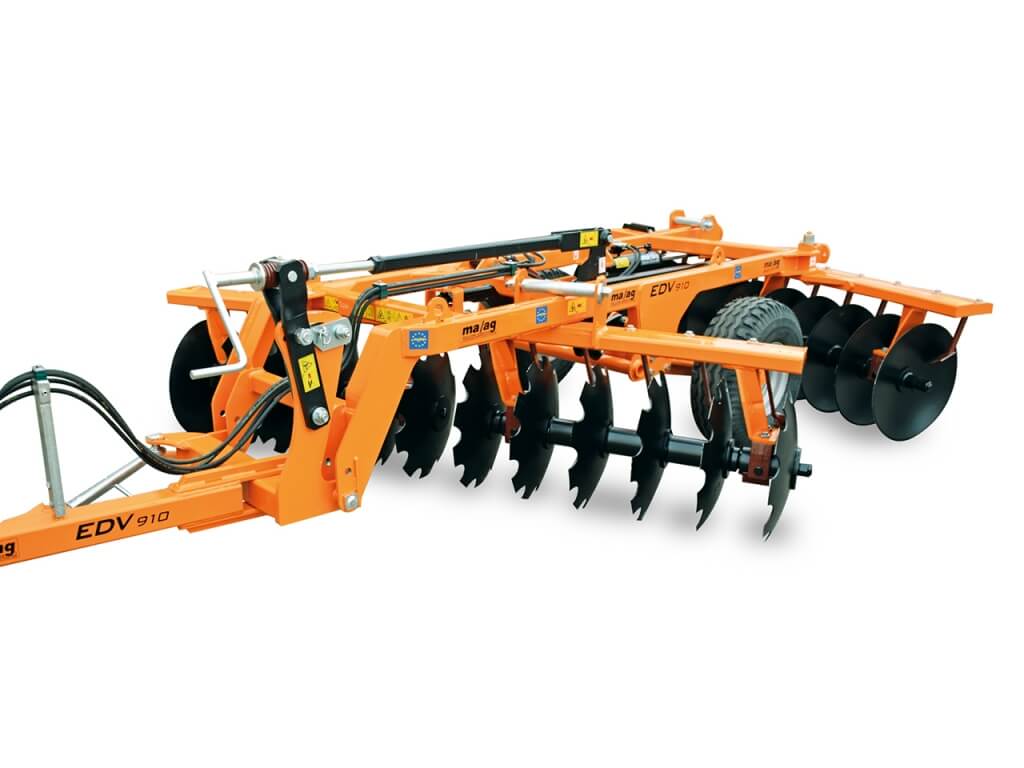

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.
EDV and EDV Idisc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).
The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.
STANDARD EQUIPMENT
| FRAME | Tubular steel 100x50x8 mm |
| SECTION | Tubular steel 100x50x7 mm |
| SUPPORTS | Two conical roller bearings, swiveling, with interchangeable crankcase, system ma/ag |
| CARRIAGE CONTROL | Double effect jack with hydraulic slider for working depth regulation |
| DISC AXLE | Steel square 30x30 mm |
| WHEELS AXLE | Steel square 50x50 mm - 5 holes hub |
| TOWING BEAM | Shift able and inclinable in different positions with manual regulation(hydraulic at demand) |
| SOIL SCRAPERS | Individual adjustable plungers |
| DISCS | Diam. 560 mm thickness 4,5 mm |
| DISCS DISTANCE | 230 mm |
| . | The machines have on series toothed discs on the front and smooth discs on the back. Different configurations have to be specified at the order. |
EDV 910 - 20 discs
| Model | EDV 910 20 11 |
| DISCS N. | 20 |
| WORK. WIDTH | 2,25 |
| TRANSP. WIDTH | 2,35 |
| SUPPORT N. | 6 |
| HP | 70 |
| KG | 1080 |
| Ø DISC | 560/4,5 |
EDV 910 - 22 discs
| Model | EDV 910 22 11 |
| DISCS N. | 22 |
| WORK. WIDTH | 2,50 |
| TRANSP. WIDTH | 2,55 |
| SUPPORT N. | 6 |
| HP | 80 |
| KG | 1160 |
| Ø DISC | 560/4,5 |
EDV 910 - 24 discs
| Model | EDV 910 24 11 |
| DISCS N. | 24 |
| WORK. WIDTH | 2,75 |
| TRANSP. WIDTH | 2,80 |
| SUPPORT N. | 6 |
| HP | 90 |
| KG | 1250 |
| Ø DISC | 560/4,5 |
Accessories
| CODE | DESCRIPTION |
| ACEDV91002 | Disc and distance piece, with soil scraper |
| ACEDV91003 | Hydraulic movement of the towing beam |
| ACEDV91004 | Hooking up of discs, diameter 610/5 (each disc) |
| ACEDV91005 | Additional charge for N.2 supports for EDV910/20 and EDV910/22 |
| ACEDV91006 | Dislocated towing bell |
| ACEDV91007 | Support beam foot |
| ACEDV91010 | Kit central discs cleaner |
| ACEDV91011 | Hydraulic kit device complete with pipes |
| ACEDV91012 | Kit hydraulic regulation balance machine |
