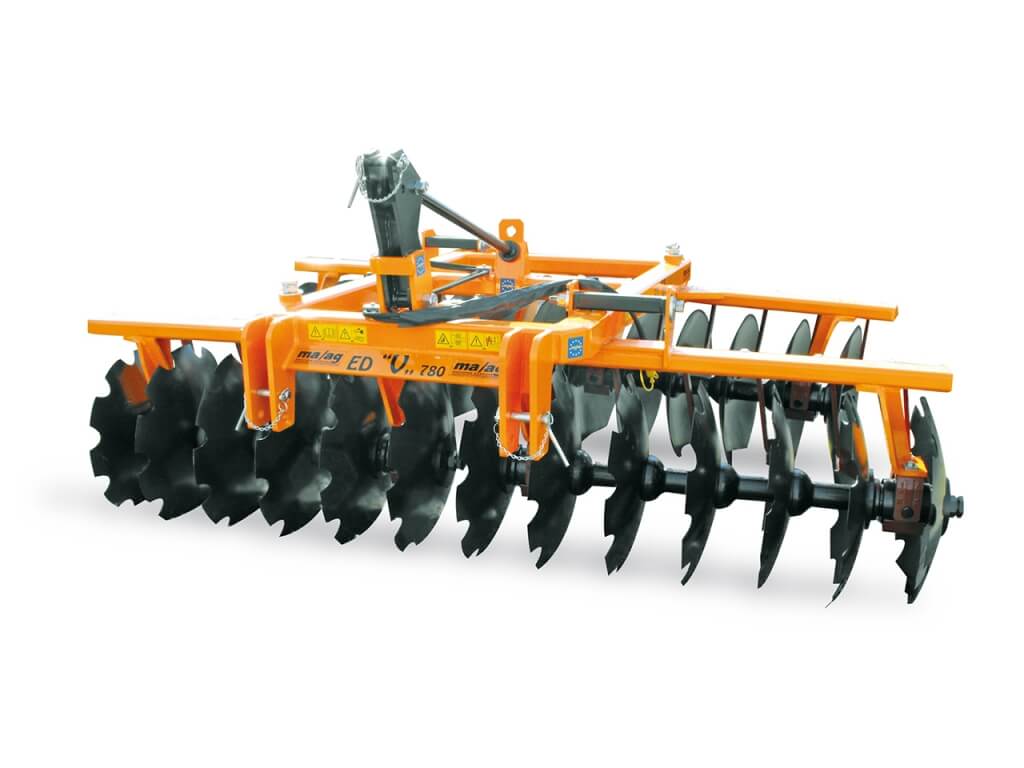

Grapă cu discuri în ‘V’ purtată, cadru fix, MAAG EDV 780

Producător: MAAG Piese MAAG

Descriere

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV Idisc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.

STANDARD EQUIPMENT

FRAME Tubular steel 100x100x7 mm
SECTIONS Tubular steel 120x60x7 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
DISC AXLE Steel square 40x40 mm
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 610 mm thickness 5 mm or 660 mm thickness 6 mm
DISCS DISTANCE 230 mm
SECTIONS ANGULATION Hydraulic

The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.

EDV 780 - 20 discs

Model EDV 780 20 12 EDV 780 20 13
DISCS N. 20 20
WORK. WIDTH 2,25 2,25
TRANSP. WIDTH 2,30 2,30
SUPPORT N. 6 6
HP 70 80
KG 930 1050
Ø DISC 610/5 660/6

EDV 780 - 22 discs

Model EDV 780 22 12 EDV 780 22 13
DISCS N. 22 22
WORK. WIDTH 2,50 2,50
TRANSP. WIDTH 2,55 2,55
SUPPORT N. 6 6
HP 80 90
KG 955 1090
Ø DISC 610/5 660/6

EDV 780 - 24 discs

Model EDV 780 24 12 EDV 780 24 13
DISCS N. 24 24
WORK. WIDTH 2,75 2,75
TRANSP. WIDTH 2,80 2,80
SUPPORT N. 6 6
HP 90 100
KG 1080 1300
Ø DISC 610/5 660/6

EDV 780 - 26 discs

Model EDV 780 26 12 EDV 780 26 13
DISCS N. 26 26
WORK. WIDTH 2,95 2,95
TRANSP. WIDTH 3,00 3,00
SUPPORT N. 8 8
HP 110 120
KG 1290 1445
Ø DISC 610/5 660/6

EDV 780 - 28 discs

Model EDV 780 28 12 EDV 780 28 13
DISCS N. 28 28
WORK. WIDTH 3,20 3,20
TRANSP. WIDTH 3,25 3,25
SUPPORT N. 8 8
HP 120 130
KG 1380 1550
Ø DISC 610/5 660/6

Accesorii

CODE DESCRIPTION
ACEDV78002 Disc and distance piece, with soil scraper
ACEDV78003 Automatic quick linkage
ACEDV78004 Towing beam with adjustable arm
