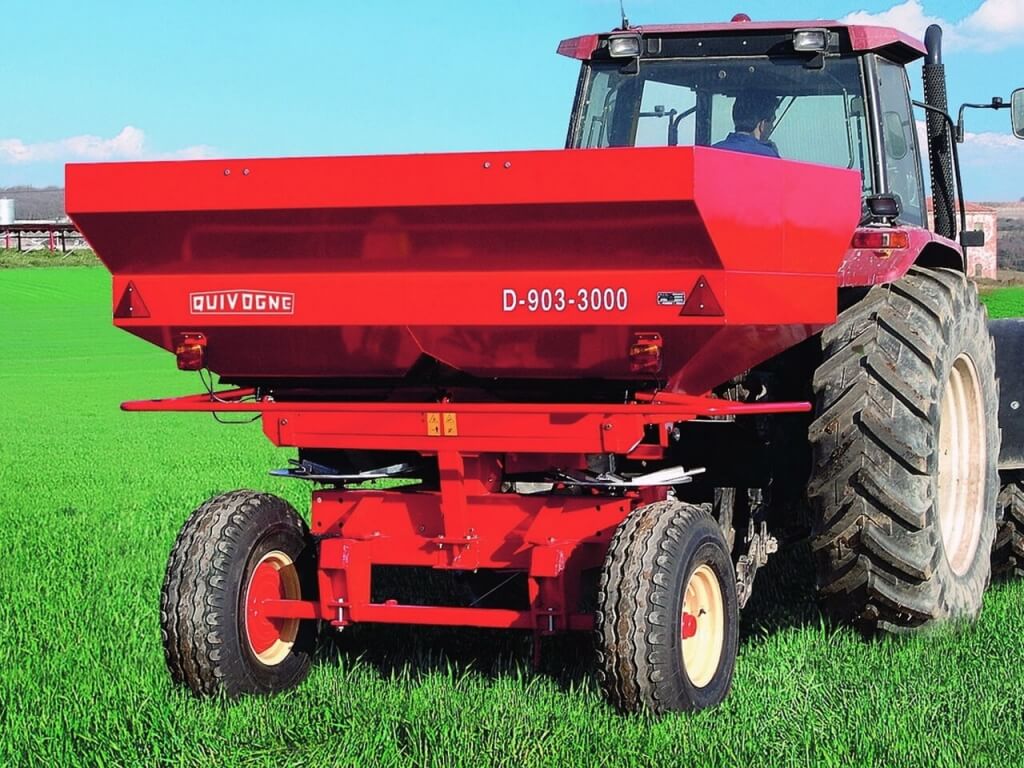

Distribuitor de îngrășăminte, tractat, Quivogne D-903

Standard equipment

• Hopper`s bases, agitators, discs, funnels and spreading vanes made of inox steel
• Non-agressive slow-turning agitator
• Ability to close the right outlet at the field boundaries and sides
• Mechanically actuated boundary spreading limiter
• Easy performance calibration test with both supplied calibration channel and calibration cup
• Granulometer
• Position lamps, indicators and brake lights
• Protective tube at rear and at side to prevent contact with the turning shaft
• PTO shaft with function clutch and protection

Specifications

• Spreading width 15,0 to 36,0 m
• Hopper capacity from 1000 l to 2000 l
• PTO shaft turning speed 540 r/min
• Disc tirning speed 675 r/min
• Spacing between the disc`s centers 1.140 mm
• Adjustment of the working width: by means of spreading vanes and funnel
• Spreading vanes per disc: 3

Options

• Conversion kit 30-36 m
• Bordcomputer
• Hydraulically actuated boundary spreading limiter
